Products Details

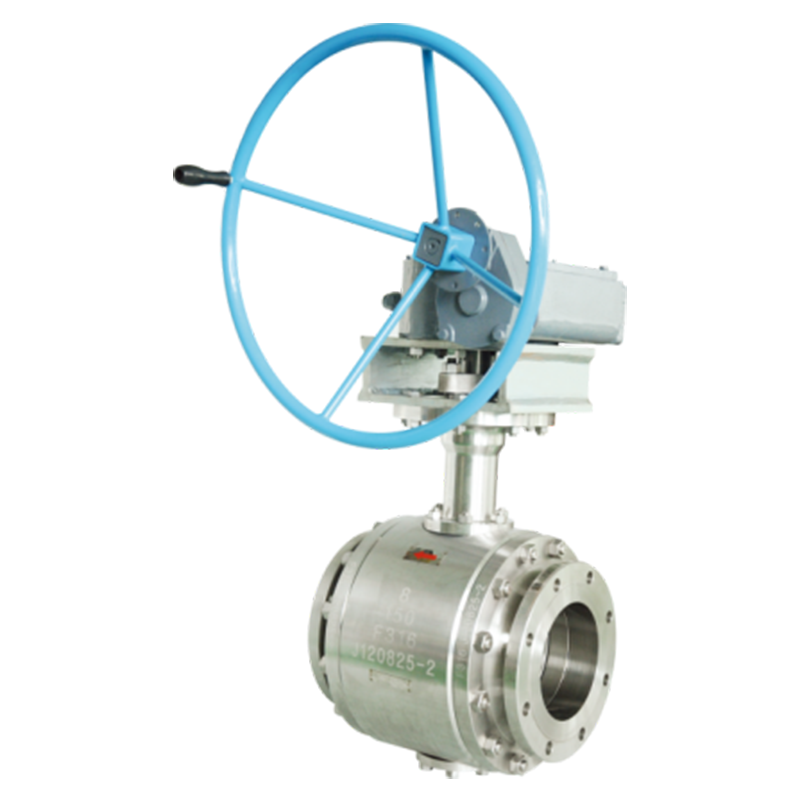

Cryogenic Ball Valve.png

Cryogenic Ball Valve

FOB Price

Negotiate

Brand

LSV

Lead Time

Stock Quantity

Customization

Warranty

12 months

Source Areas

Zhejiang , Wenzhou City , Yongjia County

Supply Ability (Month)

500 / months /

Payment Method

D/P L/C T/T
Product Details
Certification
Delivery
Supplier Profile

Main Specification

Body material Stainless Steel, Cryogenic Alloy Steel, Dual-Stainless steel Floating and trunnion mounted ball valve(Side and Top Entry)
Nominal diameter 1/2"~32"
End Connection RF, BW, THR
Pressure range Class150~1500
Working temperature -196℃~+200℃
Operation wrench, worm gear, electric, pneumatic actuator, gas over oil actuator, electro-hydraulic actuator , etc.

Product Description

MAIN FEATURES:

Cryogenic ball valve is suitable for service of working temperature down to -196℃, such as LNG, LPG, and air separation industry. The cryogenic trunnion ball valves are produced by the most advanced technology. It is designed with LIP SEAL which can keep valves with excellent sealing performance in ultra-low temperature. Wuzhou cryogenic test laboratory can test valves up to NPS32.



Design Features

Design standard as per: BS6364、GB/T 24925

Bonnet extended

Low fugitive emission control

Lip seal

Cavity pressure self relief
adopt import seat material of stable low temperature performance
The seat and pressure relief structure can be adapt varies working condition
Top entry structure is convenience to on-line maintenance



Product Range

Body material: Stainless Steel, Cryogenic Alloy Steel, Dual-Stainless steel

Floating and trunnion mounted ball valve(Side and Top Entry)

Nominal diameter:1/2"~32"

Pressure range:Class150~1500

End connection: RF, RTJ, BW

Working temperature:-196℃~+200℃

Operation : wrench, worm gear, electric, pneumatic actuator, gas over oil actuator, electro-hydraulic actuator , etc.
