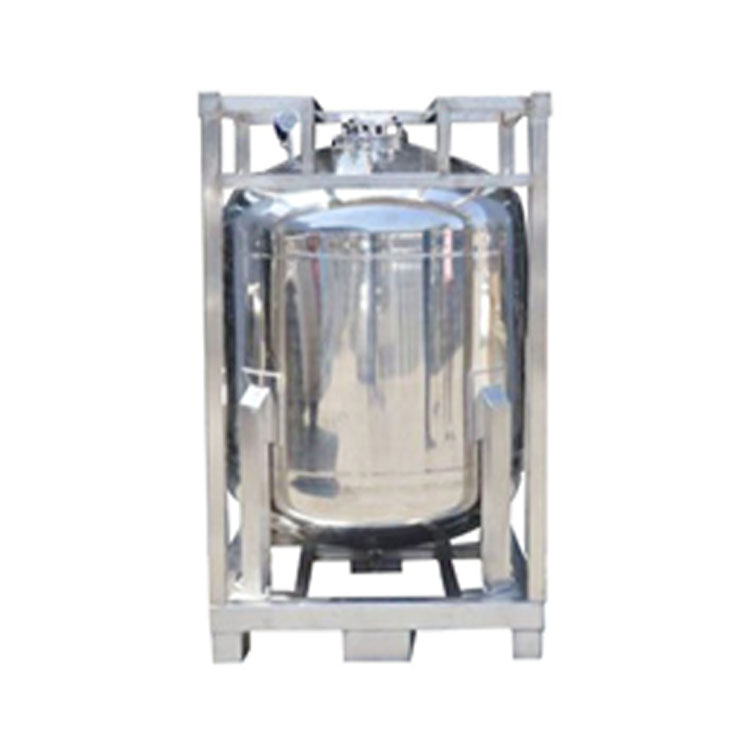

Electrolyte Tank.jpg

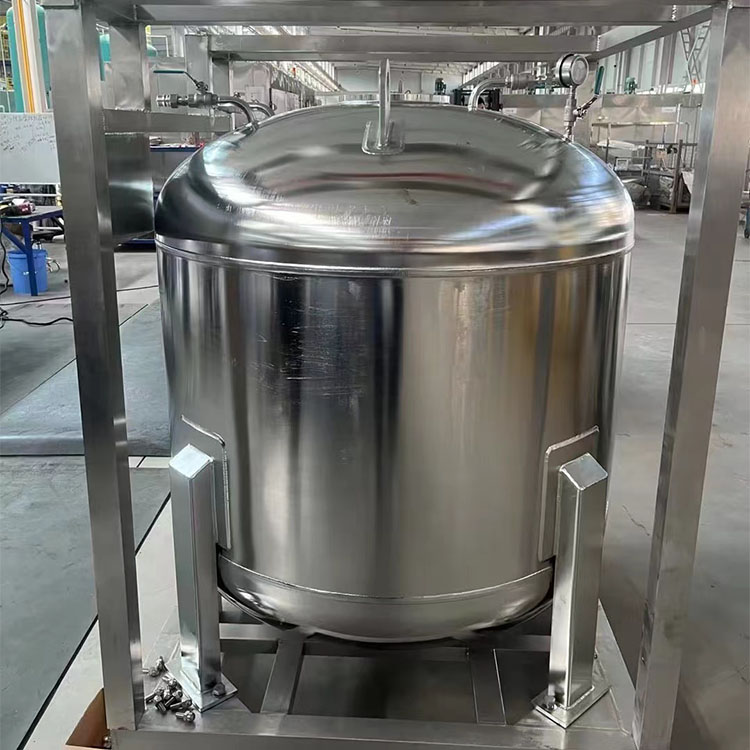

Electrolyte Tank 2.jpg

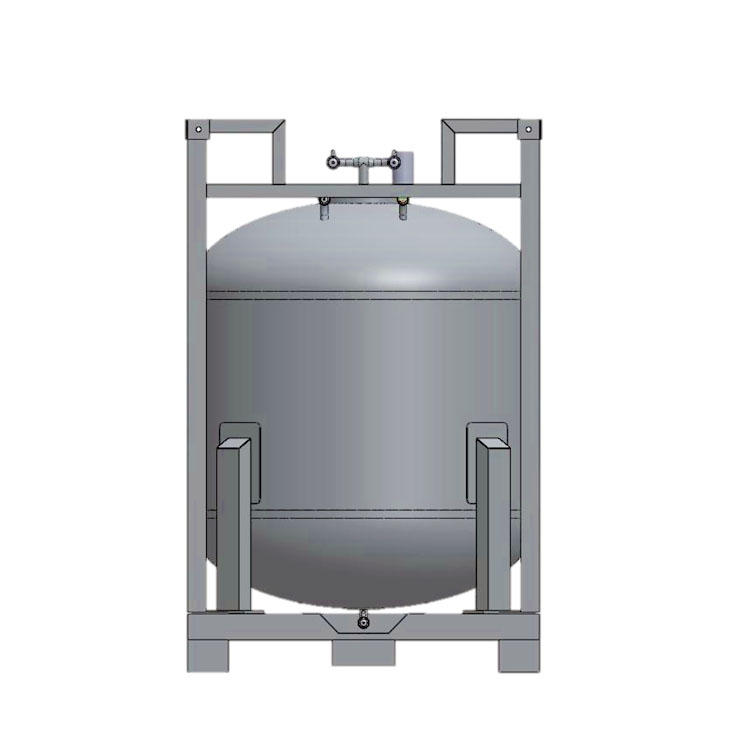

Electrolyte Tank 1.jpg

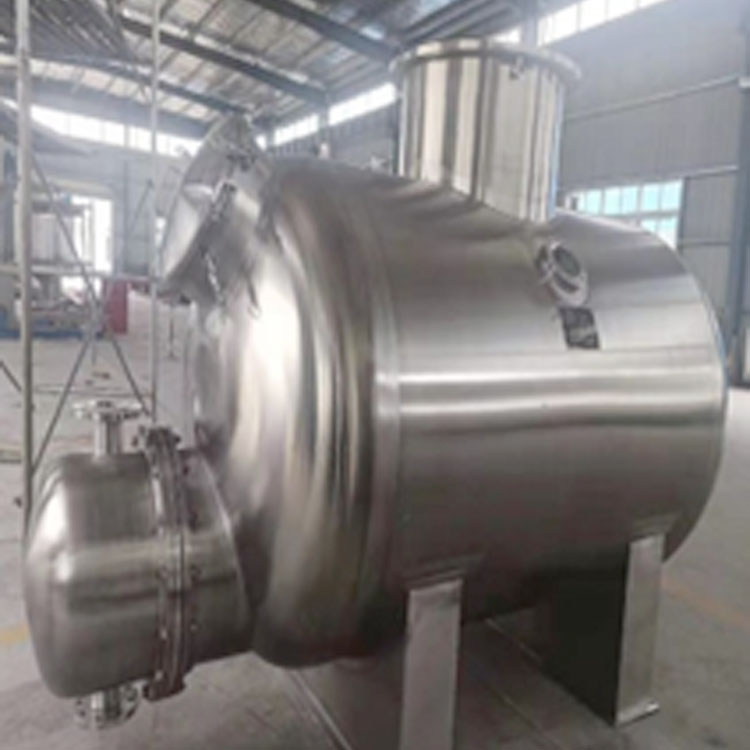

Electrolyte Tank 3.jpg

AUYAN Stainless Steel Chemical Liquid Storage Tank Electrolyte Transportation

FOB Price

≥1 set 3,000.00$

Brand

AUYAN

Lead Time

Stock Quantity

Customization

Warranty

12 months

Source Areas

Shandong , Qingdao City , Huangdao District

Supply Ability (Month)

3000 / months /

Payment Method

T/T L/C Money Gram D/A D/P Western Union
Product Details
Certification
Delivery
Supplier Profile

Main Specification

Design Pressure 0.6MPa
Maximum Working Pressure 0.0098MPa
Main Material S30408

Product Description

INTRODUCTION


Auyan Electrolyte Tank Product Features:



1. The general electrolyte tank type of the industry can also be professionally designed and produced according to the special requirements of customers;

2. The structure of the electrolyte tank is simple and reasonable, the airtightness is good, the durability is strong, the use is safe, and the filling and cleaning are convenient;

3. Suitable for storage and transportation of lithium batteries, electrolytes, and high-purity chemicals;

4. The whole barrel is made of high-quality 304 stainless steel plate, which is corrosion-resistant;

5. Using argon arc welding technology and plasma welding technology, single-sided welding, and double-sided forming, the working pressure can reach 0.6MPa (otherwise can be customized according to customer needs);

6. It is sealed by standard flange connection and PTFE gasket;

7. Mechanical mirror polishing Ra≤0.4 (or 8K mirror surface) on the outer surface of the tank, electropolishing Ra≤0.4 on the inner surface, bright inside and outside, not easy to rust, and avoid polluting the purity of the electrolyte;



electrolyte tankelectrolyte tank
TECHNICAL DATA


1000L technical characteristics table
Item Parameter
Design pressure 0.6MPa
Set temperature 60°C
Maximum working pressure 0.0098MPa
Maximum operating temperature normal temperature°C
Stock density 1.09×103Kg/m³
Full volume 1.01m³
Corrosion allowance 0mm
Filling factor 0.90%
Main material S30408
Filled water weight 1220Kg
Equipment net weight 210Kg(without frame)
Nozzle and support by drawing
Paint, Packaging and Shipping JB/T4711-2003
Note 1. The container is clean and dry, and the inside and outside   are clean and free of oily impurities;
2. The take-off pressure of the safety valve is 0.4±0.02MPa, and the gasket is EPDM;




APPLICATION


Suitable for storage and transportation of lithium batteries, electrolytes, and high-purity chemicals.
